The Pebble Bottleneck in Autogenous and Semi-Autogenous Grinding Circuits

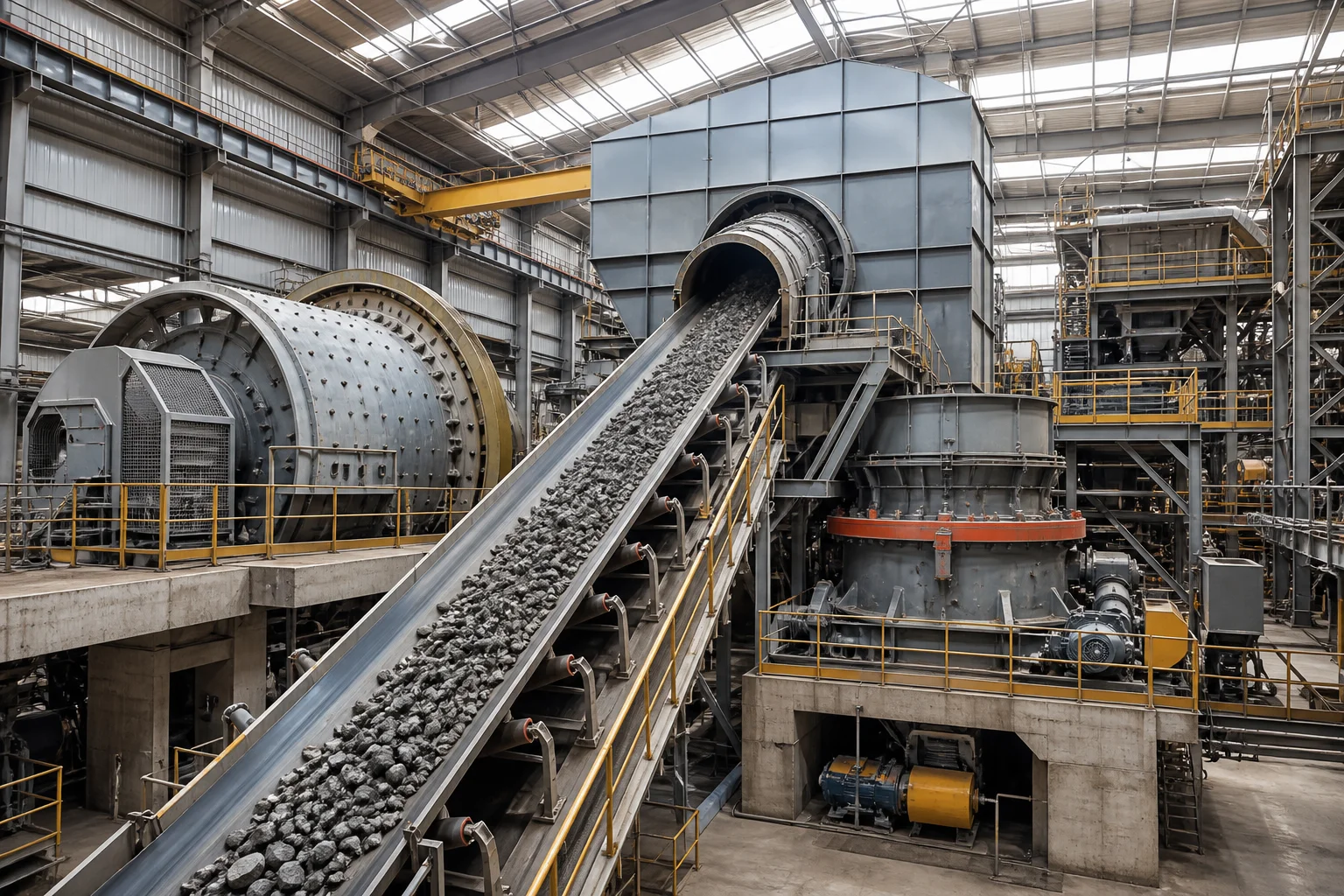

In modern mineral processing plants treating copper, gold, and polymetallic ores, the SABC (SAG Mill – Ball Mill – Pebble Crusher) grinding circuit is the global industry benchmark for energy efficiency. However, operational data consistently shows that the formation and accumulation of "critical size" pebbles—competent ore rocks ranging between 25 mm and 65 mm that resist impact breakage within the SAG charge—is the primary cause of grinding throughput bottlenecks. Without an optimized pebble crushing stage, these critical particles recirculate, wasting up to 25–35% of the mill's effective grinding energy.
Engineering Guidelines for Sizing and Integrating Pebble Cone Crushers
Selecting the Appropriate Crushing Cavity: Pebble feeds are characterized by high hardness, slippery rounded surfaces, and dense packing. Sanming Machinery equips heavy-duty pebble cone crushers with specialized Extra-Coarse or Coarse crushing chambers featuring a steep head angle, ensuring rapid material intake without boiling or surging in the feed hopper.
Robust Tramp Metal Protection: Broken steel grinding balls (typically 100 mm to 125 mm diameter) regularly escape SAG discharge grates despite trommel screens. Sanming pebble crushers feature high-flow multi-accumulator hydraulic tramp release systems that allow steel balls to pass in under 0.8 seconds, returning to the set Closed Side Setting (CSS) automatically without stopping production.
Choke-Feeding via Surge Bins: Fluctuations in pebble generation rate cause severe chamber wear and poor product shape. Installing an intermediate surge bin (15–30 minutes retention time) with an automated variable-speed vibrating feeder ensures constant choke-fed conditions, optimizing inter-particle crushing.
Abrasion-Resistant Alloy Liners: Highly siliceous critical-size pebbles induce extreme gouging abrasion. Sanming applies premium Mn18Cr2 and Mn22Cr2 austenitic alloys with specialized heat treatment, extending mantle and concave campaign life by 30% compared to standard castings.
Economic and Throughput Impact of Modern Pebble Crushing
Retrofitting an optimized Sanming hydraulic pebble cone crusher into an overloaded grinding circuit delivers an immediate 15% to 25% surge in overall SAG mill throughput while stabilizing the final product grind (P80) feeding downstream flotation circuits.
Technical FAQ: Pebble Crushing Optimization
Q1: What Closed Side Setting (CSS) is recommended for pebble crushers in SABC circuits?
For most porphyry copper and hard-rock gold ores, the recommended CSS is maintained between 10 mm and 14 mm. Operating with a tight CSS ensures that over 80% of the crushed pebble product is reduced below 12 mm, maximizing the energy relief on both the SAG and secondary ball mill circuits.
Q2: How do you prevent wet sticky fines from packing the pebble crusher chamber?
Pebbles washed across the SAG discharge trommel carry slurry moisture. It is vital to install a heavy-duty dewatering screen ahead of the pebble surge bin to strip out free water and slurry fines (-6 mm), maintaining a clean, free-flowing dry pebble feed.
