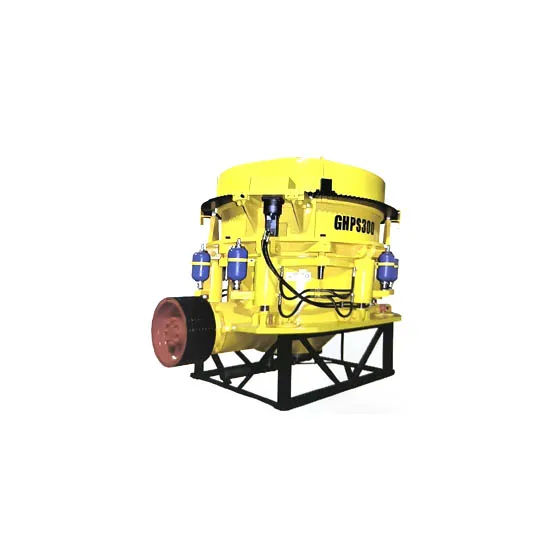

Multi-hydraulic cone crusher

Product    introduction:

 Multi-cylinder Hydraulic Cone Crusher is one of advanced cone crushers in China, which is one kind of high-class product combined with mechanical technology, electrical technology, hydraulic technology and advanced crushing technology. It adopts high strength casting-steel frame, alloy forging main shaft and high precision straight bevel gear driving structure, combined with multi-chambers selection and automation control system, which fulfills the performance and advantages. The PMH cone crusher can be widely used in secondary and fine crushing work for all kinds of hard materials and rocks to meet customers’ various needs for crushing.

Product   features:

1 Large stroke, large crushing force, high production capacity: Using new dynamic design and lifting the moving cone suspension point, the stroke is increased by 30% at the top of the crushing cavity, which is 15%-30% more efficient than the same crusher.

2 Optimized design of cavity structure, high yield: designed by adopting the principle of inter-granular lamination. Utilizing the mutual extrusion of materials, the crushing efficiency and the proportion of fine materials are significantly improved, and the needle-like materials are greatly reduced. The product is cube-shaped and is suitable for high-quality materials without the need for shaping.

3 High degree of automation: The fully automatic control system provides a variety of control modes for users to choose. It can continuously monitor the actual load inside the equipment and display various operating parameters in real time to ensure safe operation of the equipment. When a fault occurs, it will automatically display and alarm on the control panel.

FAQ

Q1：How to choose the right crusher (Jaw vs. Cone) for my mining project?

A1：Jaw crushers are typically used for primary crushing to handle large materials, while cone crushers are better suited for secondary and tertiary crushing of high-hardness materials like granite and basalt. Sanming Machinery customizes combinations such as "Jaw + Cone" or "Jaw + Impact" based on your feed size, material hardness, and output requirements.

Q2：What is the average production capacity (TPH) of Sanming mobile crushing plants for hard rock?

A2：Our mobile crushing plants cover a range of 50 TPH to 500 TPH. For example, when processing hard basalt, our standard configurations usually maintain a stable output of 150-200 TPH. The specific capacity depends on the feed size and the specifications of the final product.

Q3： How does Sanming Machinery ensure the longevity of crusher wear parts in abrasive environments?

A3：We use high-manganese steel (Mn13Cr2 or Mn18Cr2) for casting jaw plates and mantles, processed with a specialized heat treatment. With 18 years of manufacturing expertise, our wear parts offer 15%-20% higher durability than standard market options, significantly reducing maintenance downtime.

Q4：Can Sanming provide customized crushing and screening solutions for specific materials like granite or basalt?

A4：Yes. Sanming Machinery offers not just equipment, but one-stop EPC solutions. With over 1,880 global projects ranging from river stone sand-making in the Philippines to copper ore crushing in Congo, we provide customized flowcharts optimized for energy efficiency based on your specific material characteristics.

Q5：What after-sales support and installation services does Sanming offer for international clients?

A5：We provide "24-hour online response + on-site guidance." Our experienced engineers are dispatched to your project site for installation, commissioning, and operator training. Additionally, we maintain global spare parts warehouses to ensure urgent parts are shipped within 48 hours.
