Products Description

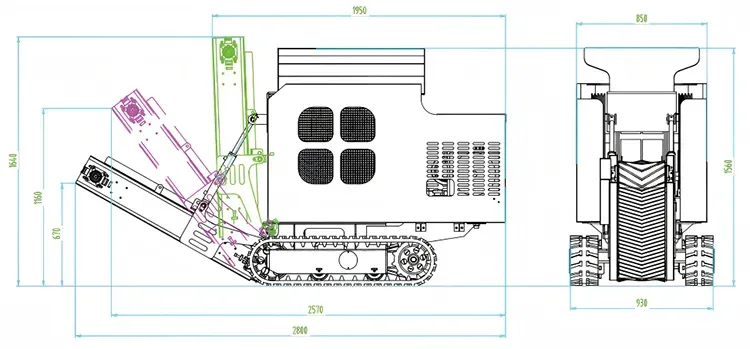

Working dimensions2800×930×1600mm
Vertical plate inner width280mm
transportation clearance1950×930×1640mm
Total external width930mm
Trailer Model180×72×37mm
Support roller diameter126mm
Number of support rollers4

Feed inlet dimensions

150×250mm

Maximum feed size

150mm
Bin capacity0.15m³
Stacking height670-1000mm

Feed conveyor

1400×300mm
Gravel areaDiameter 10-30mm
speed of travel0-3km/h
Trailer specificationsrubber belt track
production capacity2-4T/h
Transportation width300mm
Equipment Operation MethodManual hydraulic valve
Walking ModeHydraulic-powered crawler-type
Walking Motor Model6K-315
Continuous torque600N.m
Hydraulic pump specificationsPGP5108
Conveyor Mechanism Motor ModelBMER-300
Conveyor lifting methodManual hydraulic lifting operation
jaw crusher mechanism lubrication methodlubricating grease
Tracked tension adjustment methodmechanical
Gasoline engine – Standard equipmentRunTong R500-V2-18HP
output power13KW/3600r/min
torque output28N.m/2500r/min
Fuel tank capacityGasoline: 6.5 L
Engine oil volume1.0L
Hydraulic oil tank capacity20L 32#/46# Hydraulic Oil

FAQ

Q1:How to choose the right crusher (Jaw vs. Cone) for my mining project?

A1:Jaw crushers are typically used for primary crushing to handle large materials, while cone crushers are better suited for secondary and tertiary crushing of high-hardness materials like granite and basalt. Sanming Machinery customizes combinations such as "Jaw + Cone" or "Jaw + Impact" based on your feed size, material hardness, and output requirements.


Q2:What is the average production capacity (TPH) of Sanming mobile crushing plants for hard rock?

A2:Our mobile crushing plants cover a range of 50 TPH to 500 TPH. For example, when processing hard basalt, our standard configurations usually maintain a stable output of 150-200 TPH. The specific capacity depends on the feed size and the specifications of the final product.


Q3: How does Sanming Machinery ensure the longevity of crusher wear parts in abrasive environments?

A3:We use high-manganese steel (Mn13Cr2 or Mn18Cr2) for casting jaw plates and mantles, processed with a specialized heat treatment. With 18 years of manufacturing expertise, our wear parts offer 15%-20% higher durability than standard market options, significantly reducing maintenance downtime.


Q4:Can Sanming provide customized crushing and screening solutions for specific materials like granite or basalt?

A4:Yes. Sanming Machinery offers not just equipment, but one-stop EPC solutions. With over 1,880 global projects ranging from river stone sand-making in the Philippines to copper ore crushing in Congo, we provide customized flowcharts optimized for energy efficiency based on your specific material characteristics.


Q5:What after-sales support and installation services does Sanming offer for international clients?

A5:We provide "24-hour online response + on-site guidance." Our experienced engineers are dispatched to your project site for installation, commissioning, and operator training. Additionally, we maintain global spare parts warehouses to ensure urgent parts are shipped within 48 hours.
