For mine managers and aggregate producers operating hard rock quarries across Sub-Saharan Africa, maintaining high throughput while controlling wear cost per ton is the single largest operational challenge. Whether processing gold ore in Witwatersrand granite, iron ore, or dense basalt, selecting the rightMining Machinerydirectly dictates your operating margins.

1. Primary Crushing Selection: Jaw Crusher Operational Dynamics

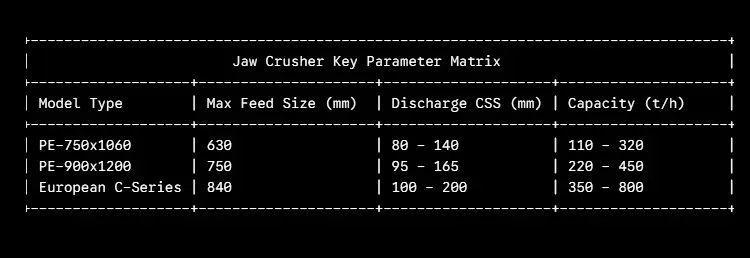

Primary reduction is the foundation of any crushing circuit. A heavy-dutyjaw crusherreduces ROM (run-of-mine) boulders down to a manageable size before secondary cone or impact crushing.

Prevention of Blockages in Crushers

Preventing uncrushable tramp metal or oversized rocks from stopping production is critical. A primary cause of downtime in primary jaw crushers is improper feed control:

• Ratio of Reduction: Maintain feed size within 80% of the gape dimension.

• Feed Distribution: Utilize a vibrating grizzly feeder with adjustable bar gaps to remove fines before they enter the crushing cavity.

• Clearing Cavities: To clear blockages in crushers, installing a hydraulic toggle assistance system or a hydraulic rock breaker above the feed hopper prevents manual clearing hazards and cuts downtime by up to 70%.

2. Quarry Equipment Suppliers Gauteng: Designing a High-Yield Aggregate Circuit

Aggregate processing operations in the Witwatersrand basin and surrounding regions require robust crushing lines capable of severe continuous duty. As leading Quarry equipment suppliers Gauteng, Sanming Machinery engineers modular processing circuits configured for local rock compressive strengths .

Circuit Configuration Breakdown

1. Primary Stage: Deep-cavity single-toggle jaw crusher receiving material from grizzly feeder.

2. Secondary Stage: Single-cylinder hydraulic cone crusher delivering cubical shape for concrete aggregates.

3. Screening Stage: Heavy-duty incline vibrating screen separating 0--5mm, 5--10mm, 10--19mm, and 19--25mm products.

3. Aggregates Equipment Suppliers Johannesburg: Mobile vs Stationary Crusher Economics

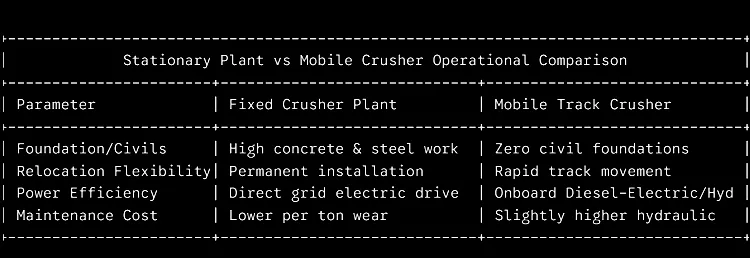

When evaluating aCrusher Plantfor contract crushing versus fixed mining, operating expenditure (OPEX) versus capital expenditure (CAPEX) must be calculated on a cost-per-ton basis.

For contractors searching for mobile crusher for sale South Africa or jaw crusher for sale South Africa, diesel-electric dual-power models provide the lower operating costs of grid electric power while retaining track-mounted mobility for on-site contract crushing.

4. Maintenance & Wear Life: Manganese Steel Liners in Mining Machinery

Managing wear parts consumption is vital when calculating a stone crusher machine price SA payback model. Manganese jaw plates ($Mn18Cr2$ or $Mn22Cr2$) and cone mantle/concaves must be monitored for wear thickness to preserve crushing angle and CSS (Closed Side Setting).

• Jaw Crusher Plates Price Factor: Premium high-manganese steel jaw plates feature self-hardening characteristics under impact stress, extending wear life by 30-45% in abrasive granite and gold quartz crushing.

• Cone Crusher Mantle Wear: Operating a cone crusher under choke feed conditions ensures even mantle and concave wear, preventing localized cupping and maintaining a uniform crushing chamber profile.

5. Frequently Asked Questions (FAQ)

Q1: How do mine operators in Johannesburg select between a jaw crusher and a cone crusher for gold ore processing?

A: In typical gold mining operations around Johannesburg, a primary jaw crusher is deployed first to handle large, unshaped run-of-mine ore ($600\text{--}800\text{mm}$). A secondary or tertiary cone crusher is then used to reduce the material down to feed sizes suitable for ball mills or heap leaching ($<12\text{mm}$), as cone crushers offer superior crushing force and cubical particle shape control on hard, abrasive quartz ores.

Q2: What is the typical cone crusher price South Africa buyers should factor into total lifecycle cost calculations?

A: The purchase price of a cone crusher in South Africa generally accounts for only 20-25% of its total 10-year lifecycle expenditure. Operators in Gauteng must factor in continuous power consumption, manganese wear liner replacement schedules, lubrication oil changes, and regular mantle maintenance to determine the true cost per ton of final crushed product.

Q3: What options exist for crushing plant hire South Africa versus buying new or second hand mining equipment Johannesburg?

A: For short-term quarrying contracts under 12 months, crusher plant hire South Africa offers operational flexibility without balance sheet debt. However, for continuous mining projects, investing in a new or refurbished machine from certified mining machinery suppliers in South Africa yields a significantly lower per-ton crushing cost.

Q4: How can quarry operations in Gauteng resolve persistent blockages in crushers during wet seasons?

A: During rainy seasons in Gauteng, clay-rich feed can pack inside the lower chamber. Installing an active vibrating grizzly pre-screen to bypass damp fines before the primary jaw intake, adjusting the toggle plate angle, and integrating automatic hydraulic chamber clearing systems prevents severe blockages in crushers and maintains steady plant throughput.

Q5: What vibrating screen for sale South Africa configurations are best suited for gold wash plant and coal processing equipment South Africa setups?

A: For gold wash plants and coal washing plants across South Africa, polyurethane screen decks with high-frequency vibrating screens are preferred over woven wire mesh. Polyurethane resists corrosion, prevents pegging and blinding under wet slurry conditions, and delivers extended liner life when handling abrasive gold tailings and coal fines.
