Precision and Power: Inside the Manufacturing Process of a PEV Jaw Crusher

In the demanding world of mining, quarrying, and aggregate production, the first line of defense is the primary crusher. For decades, the Jaw Crusher—specifically the robust PEV series—has been the industry's workhorse. But what does it take to build a machine capable of crushing tons of hard rock, hour after hour?

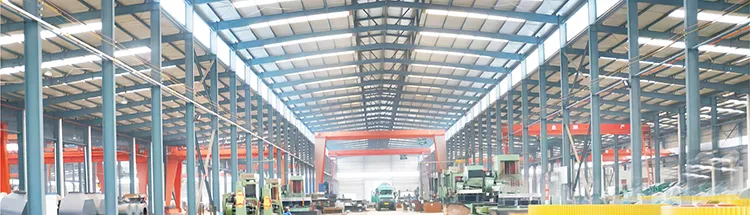

At Your Company, manufacturing a PEV Jaw Crusher is not just an assembly process; it’s an exercise in precision engineering and material science. Let’s take you behind the scenes of our manufacturing facility.

1. Heavy-Duty Frame Fabrication: The Foundation of Strength

The foundation of any heavy-duty machine is its structure. For a PEV Jaw Crusher, the frame must withstand immense forces. We start with high-quality E355 steel plates, precisely cut using advanced CNC plasma cutting machines.

The unique aspect of our PEV series is the non-welded, bolted frame design (on larger models), which offers superior fatigue resistance compared to welded frames. For welded structures, we employ advanced submerged arc welding (SAW) and conduct comprehensive thermal stress relief to prevent crack formation under the punishing conditions of rock crushing.

2. The Eccentric Shaft: The Heartbeat of Crushing

The "swing" motion that crushes the stone comes from the eccentric shaft. We manufacture our shafts from high-grade 42CrMo alloy steel. After raw machining, the shaft undergoes rigorous heat treatment (quenching and tempering) to achieve the perfect balance of surface hardness and core toughness, ensuring it can handle the intense torque and shock loads of basalt or granite.

3. Casting and Precision Machining of Wear Parts

A crusher is only as good as its contact points. The moving and fixed jaw plates, as well as the toggle plate, are critical. We cast our jaw plates using custom high-manganese steel alloys (such as Mn18Cr2 or Mn22Cr2).

The key is in the grain refinement during casting, which enhances wear resistance and extends the life of these consumable parts, directly reducing the operational downtime for our clients. Every critical surface is then precision machined to micron-level tolerances on large vertical lathes and boring machines to ensure perfect fitment and operation.

4. Advanced Bearings and Final Assembly

The smooth operation of the eccentric shaft relies on heavy-duty bearings. We use only premium-grade spherical roller bearings from globally recognized brands. The entire assembly takes place in a controlled environment to prevent contamination.

Our assembly technicians carefully press the bearings, install the toggle plate mechanism, and fine-tune the discharge opening adjustment system, ensuring that every PEV Jaw Crusher leaves our facility ready to perform.

5. Rigorous Testing and Quality Assurance

Before a single PEV Jaw Crusher is shipped, it must pass a comprehensive testing protocol. This includes a "dry run" test (without load) for 4 to 8 hours to monitor bearing temperature, vibration, noise levels, and the smooth function of all moving parts. This ensures maximum uptime from the moment it is commissioned at your quarry or stone production plant.

Your Partner in Rock Crushing Success

Understanding the rigorous manufacturing process behind your equipment is the first step to ensuring long-term profitability.  we don’t just build machines; we build reliability.

Whether you are designing a new stone production line or upgrading your primary crusher, trust the engineering behind the PEV series.
